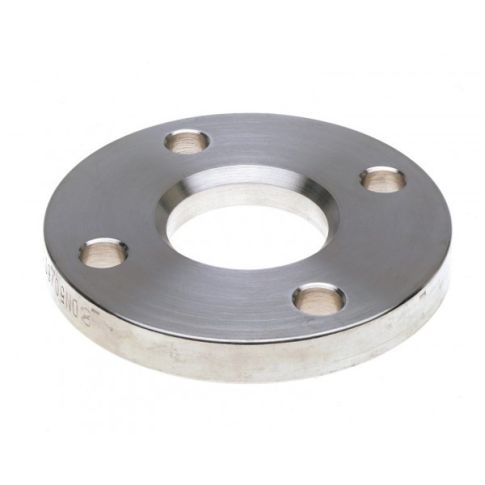

Lapped Flange EN1092-1 Typ 02 PN 16

Material: 1.4571

Delivery time: 1 - 3 working days

Grouped product items
Lapped Flange EN 1092-1 Typ 02 Form A PN 16 DN 50/60,3 x 20 24491713	Qty 82 Pc. in stock Out of stock	£43.22 £36.32
Dimension PN16 DimensionDN 50/60.3 √òB65,0 mm √òK125,0 mm √òD165,0 mm C20,0 mm √òL18,0 mm E5,0 mm Schrauben Anzahl4
Lapped Flange EN 1092-1 Typ 02 Form A PN 16 DN 65/76,1 x 20 24491714	Qty 148 Pc. in stock Out of stock	£52.30 £43.95
Dimension PN16 DimensionDN 65/76.1 √òB81,0 mm √òK145,0 mm √òD185,0 mm C20,0 mm √òL18,0 mm E6,0 mm Schrauben Anzahl4
Lapped Flange EN 1092-1 Typ 02 Form A PN 16 DN 80/88,9 x 20 24491715	Qty 20 Pc. in stock Out of stock	£59.68 £50.15
Dimension PN16 DimensionDN 80/88.9 √òB94,0 mm √òK160,0 mm √òD200,0 mm C20,0 mm √òL18,0 mm E6,0 mm Schrauben Anzahl4
Lapped Flange EN 1092-1 Typ 02 Form A PN 16 DN 100/114,3 x 22 24491717	Qty 161 Pc. in stock Out of stock	£72.03 £60.53
Dimension PN16 DimensionDN 100/114.3 √òB120,0 mm √òK180,0 mm √òD220,0 mm C22,0 mm √òL18,0 mm E6,0 mm Schrauben Anzahl8
Lapped Flange EN 1092-1 Typ 02 Form A PN 16 DN 125/139,7 x 22 24491719	Qty 28 Pc. in stock Out of stock	£89.36 £75.09
Dimension PN16 DimensionDN 125/139.7 √òB145,0 mm √òK210,0 mm √òD250,0 mm C22,0 mm √òL18,0 mm E6,0 mm Schrauben Anzahl8
Lapped Flange EN 1092-1 Typ 02 Form A PN 16 DN 150/168,3 x 24 24491721	Qty 16 Pc. in stock Out of stock	£118.17 £99.30
Dimension PN16 DimensionDN 150/168.3 √òB174,0 mm √òK240,0 mm √òD285,0 mm C24,0 mm √òL22,0 mm E6,0 mm Schrauben Anzahl8
Lapped Flange EN 1092-1 Typ 02 Form A PN 16 DN 200/219,1 x 26 24491722	Qty 18 Pc. in stock Out of stock	£159.65 £134.16
Dimension PN16 DimensionDN 200/219.1 √òB226,0 mm √òK295,0 mm √òD340,0 mm C24,0 mm √òL26,0 mm E6,0 mm Schrauben Anzahl12
